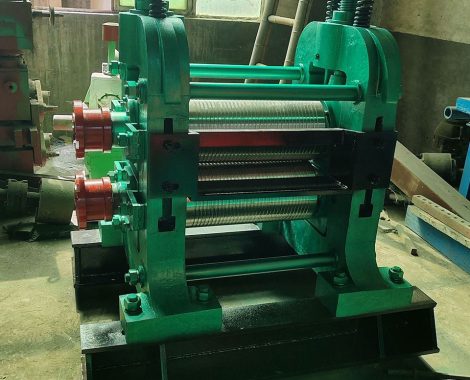

Arrangement of rebar rolling mill machine:

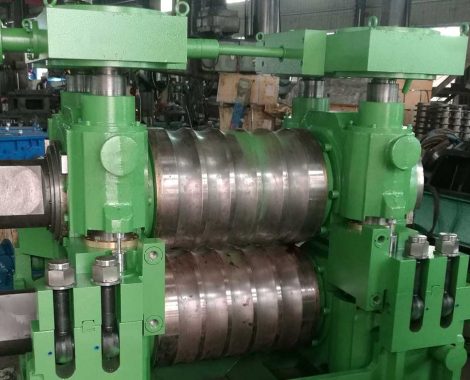

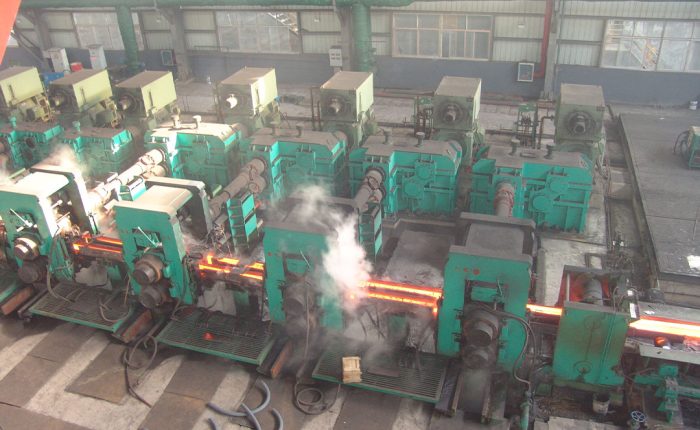

Ø550×6 (H/V) rough rolling 1#～6#～Ø420×6(H/V) medium rolling 7#～12#～Ø320×6(H/V) finishing rolling 13#～18# unit. Among them, 6 rough rolling mills, 6 medium rolling mills, and 6 finishing rolling mills, and all of them adopt the full continuous rolling mode of DC motor drive. The full-line rolling mill type is all in the form of alternating (H/V) rolling mill (14#, 16#, 18# three sets Ø320×2 (H/V).

Rolling Process:

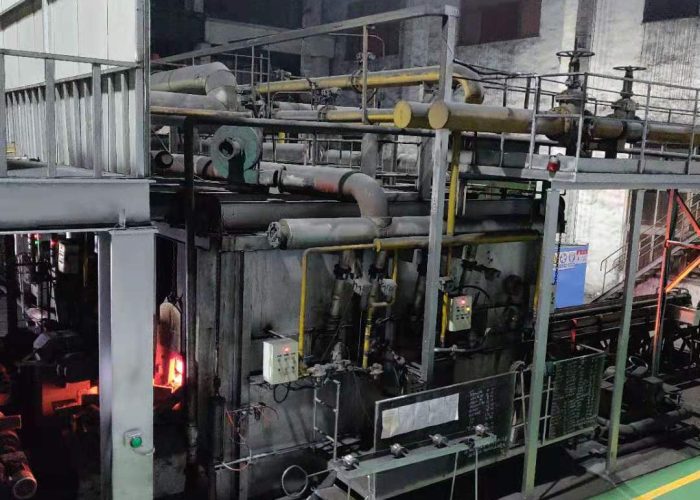

Billet—heating furnace heating—outlet roller—pneumatic shearing machine—Ø550×6(H/V) rough rolling 1~6#(DC×6)—1# crank, start Stop type flying shear—Ø420×6(H/V) Medium rolling 7～12#(DC×6)—2# crank, start-stop flying shear— 1# pneumatic standing looper— Ø320×6(H/V) finishing rolling 13～18#(DC×6)—flying shear pinning roller—3# double-speed flying shear—cold bed input variable frequency roller—rack Cooling bed—Qingtou rollerway—Unloading steel device—Cold bed output roller—500t cold shear—Pingto steel moving machine over—-Inspection bench—shift Steel inspection—bundling—weighing—signage—inbound

Parameters:

1) Annual Capacity:  40,000 tons

2) Raw material: scrap—–150*150 billets

3) Finished products: Ø8×2, Ø10×2、Ø12、Ø14、Ø16、Ø18、Ø20、Ø22、Ø25、Ø32mm rebar

4) Steel-types of rolling：Low carbon alloy steel, stainless steel, plain carbon steel
