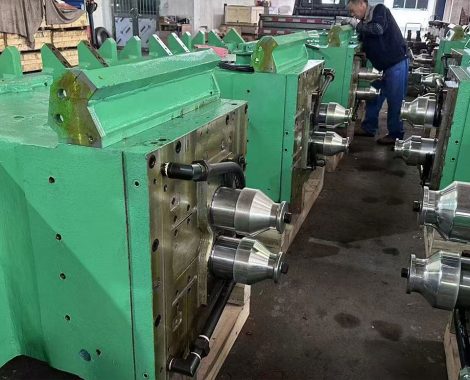

- Hot wire rod rolling mill is 45° non-twisting top crossed continuous mill group, and it belongs to type of Morgan.
- Hot wire rod rolling mill is used to produce plain steel, carbon constructional quality steel, low-alloy steel, tray screw thread steel.
The final product is φ5.5—φ16mm hot wire rod coil with rolling speed 90-135m/s.
Details Description

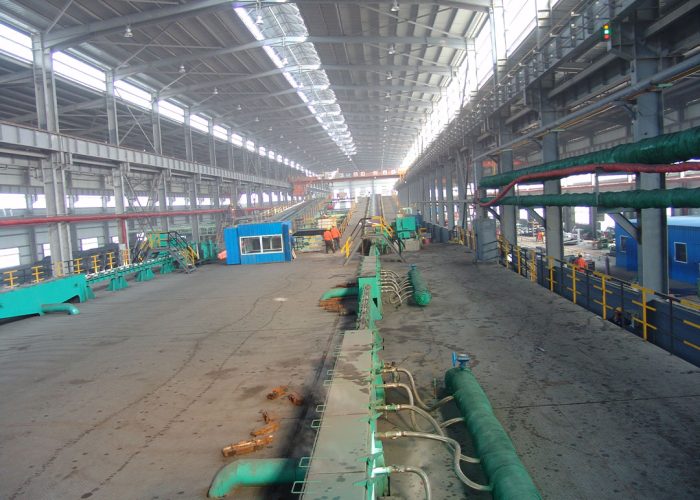

The finished product of hot wire rod rolling production line is wire rod of 5.5-16mm.
The main process is : IF furnace smelting by continuous casting machine molding 70 square billets , by the conveyor roller to the whole hot rolling unit, direct roll forming; and then through the pressure feed, silking, after cooling, the coil tilter machine rollover, push the small coil to the collecting machine, N small volume on the collecting machine combined bundled into a large roll; then listed, weighing, storage.
Parameter:
Annual Capacity: 50,000 up to 500,000 tons
Raw Material: From 60*60 up to 200*200 billets
Design Method: top crosses 45°；ten frames concentrated transmission
Transmission Motor: DC motor
Rotating Speed: 1000~3000r/min
Working Speed: 900~1100r/min
Laying Head of Wire Rod Mill
The rolling mill gripping shear consists of support base, main machine of shearing and cylinder, which is located in the entrance of the pre-finishing mill and finishing mill. It is used to protect the pre-finishing mill and finishing mill by cutting off the rolled piece and stop further feeding into the mill when there is an operation failure.
Pinch Roll for Rolling Speed 135m/s
Pinch roll is arranged before entrance of wire discharger, respectively according to the technical requirement of wire rod head, tail or full clamp clamping work piece and turn it into the wire discharger machine. Rolling mill pinch roll is the horizontal cantilever structure.
