Cardan Shaft (Universal Joint) - Steel Rolling Mill Machine

Cardan Shaft （Universal Joint）

Cardan shaft has a large angle compensation capability.
The structure is compact and reasonable, which makes the carrying more reliable.
The carrying capacity is large, and its supporting range is more superior.
Cardan shaft has high transmission efficiency and obvious energy-saving effect.

China cardan shaft of rolling mill machine

Details Description

In mechanical transmission, torque is transmitted between the shaft and the shaft. In the master-slave drive, the torque must be transmitted by a coupling or other transmission method, and with the improvement of the degree of mechanical automation and machining accuracy, especially for the use of servo motors, stepper motors, encoders, and other high-precision automation. In the case of precision machinery, the coupling becomes an indispensable coupling. The reason for this is that the coupling has its own unique advantages.

In addition to the most direct transmission of the torque generated by the torque source, the coupling can absorb the radial deviation, the angular deviation, and the composite deviation when the two shafts are connected, effectively ensuring the mechanical Normal operation, thereby extending the life of the machine. At the same time, it can also attenuate the vibration generated by the torque source to ensure smooth transmission of torque.

Parameter:

NO	D mm	Tn kN.m	Tf kN.m	β		Size			Rotational inertia kg.m2		M kg
NO	D mm	Tn kN.m	Tf kN.m	β	LS mm	Lmin	D3	Lm	Lmin	Increase 100mm	Lmin	Increase 100mm
SWC180BF	180	20	10	≤25	100	810	114	110	0.267	0.0070	80	2.8
SWC225BF	225	40	20	≤15	140	920	152	120	0.778	0.0234	138	4.9
SWC250BF	250	63	31.5	≤15	140	1035	168	140	1.445	0.0277	196	5.3
SWC285BF	285	90	45	≤15	140	1190	194	160	2.873	0.0510	295	6.3
SWC315BF	315	125	63	≤15	140	1315	219	180	5.094	0.0795	428	8.0
SWC350BF	350	180	90	≤15	150	1410	267	194	9.195	0.2219	632	15.0
SWC390BF	390	250	125	≤15	170	1590	267	215	16.62	0.2219	817	15.0
SWC440BF	440	355	180	≤15	190	1875	325	260	28.24	0.4744	1290	21.7
SWC490BF	490	500	250	≤15	190	1985	325	270	46.33	0.4744	1631	21.7
SWC550BF	550	710	355	≤15	240	2300	426	305	86.98	1.3570	2567	34.0
SWC620BF	620	1000	500	≤15	240	2500	426	340	147.50	1.357	3267	34.0

Characteristics:

The common feature of the universal coupling is that the angular compensation amount is large, and the angles of the two axes of different structural types of the universal coupling are different, generally between ≤5°-45°.
The universal coupling makes use of the characteristics of its mechanism, so that the two shafts are not in the same axis, and can realize the continuous rotation of the connected two shafts when there is an angle between the axes, and reliably transfer the torque and movement.
Cardan shaft has compact structure, large transmission torque, long service life, and long-term use under severe working conditions.

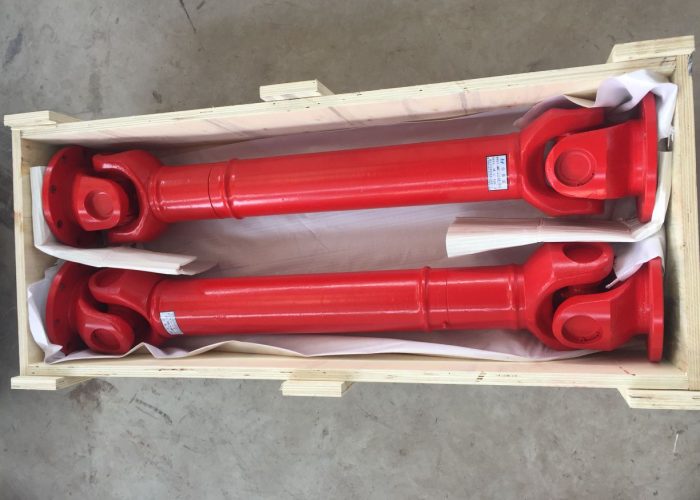

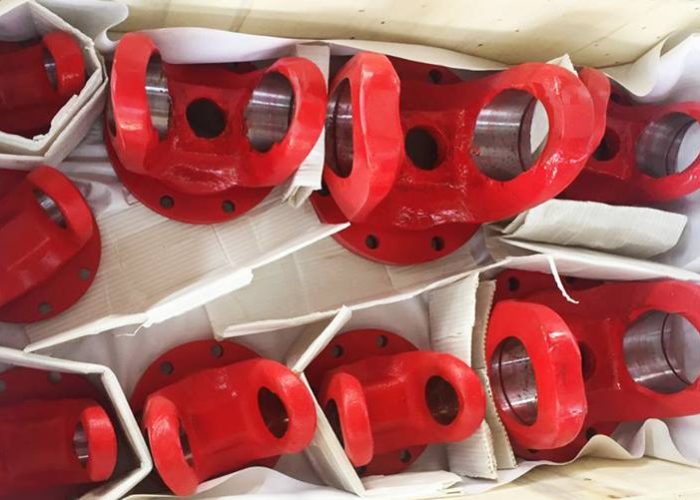

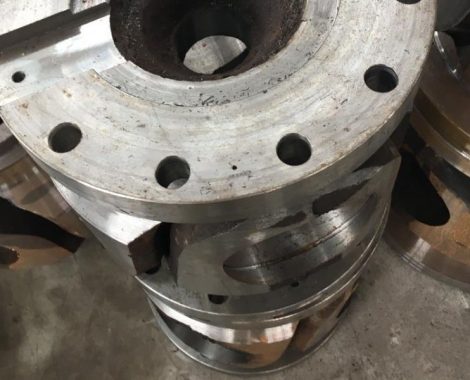

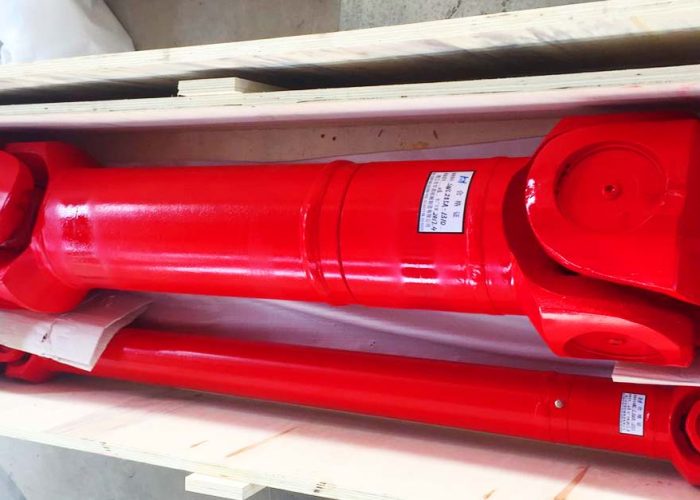

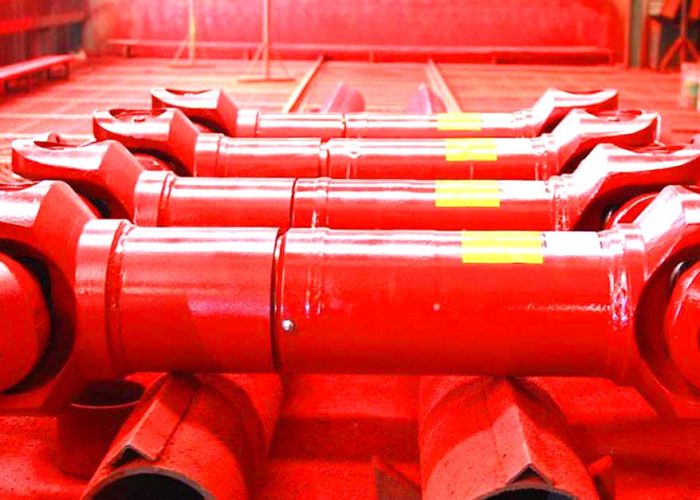

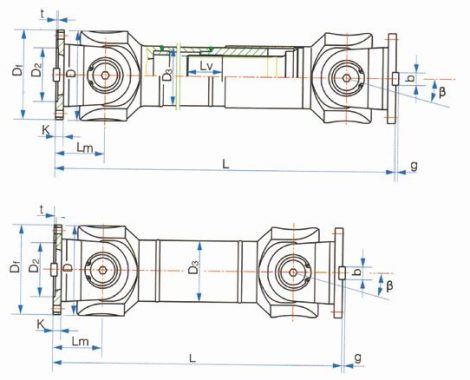

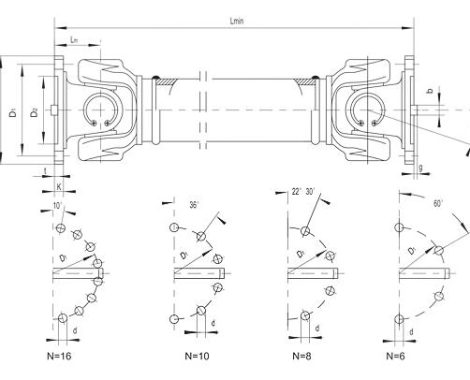

Cardan Shaft Drawing

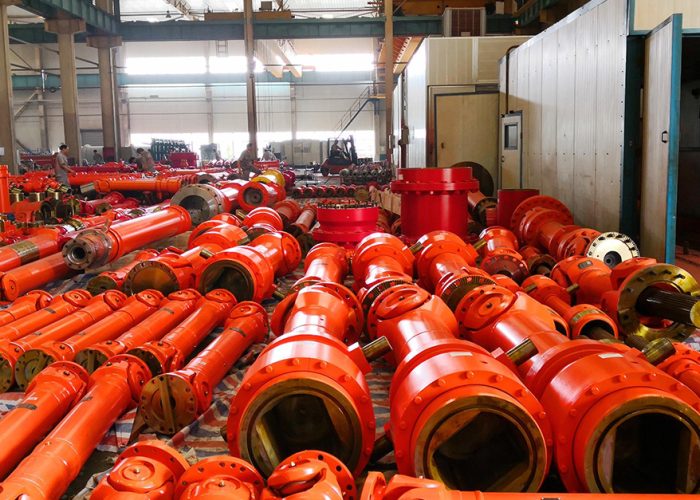

The universal joint can be widely used to transfer torque in mechanical shafting of metallurgy, lifting, engineering, mining, petroleum, marine, coal, rubber, paper machinery, and other heavy machinery industries. We can supply the customized cardan shaft according to your requested specifications and sizes.

Universal Joint

The universal joint is a joint that connects two levers. The joint consists of a pair of ordinary hinges with a relative orientation of 90°. The lever can be turned in any direction and is still widely used in the transmission of steel rolling mills. The structure and function of the universal joint are somewhat like the joint on the limbs of the human body, which allows the angle between the connected parts to vary within a certain range.
