FINISHING BLOCK MILL
- Finishing block mill is applied for finishing of work pieces with help of top crossed 45 degrees Composition.
- It is highly appreciated for eliminating chances of twisting and contact axis while operation.
- Finishing block mill is completely suitable to for producing carbon, low alloy and high alloy steel grades with superior efficiency.
Details Description

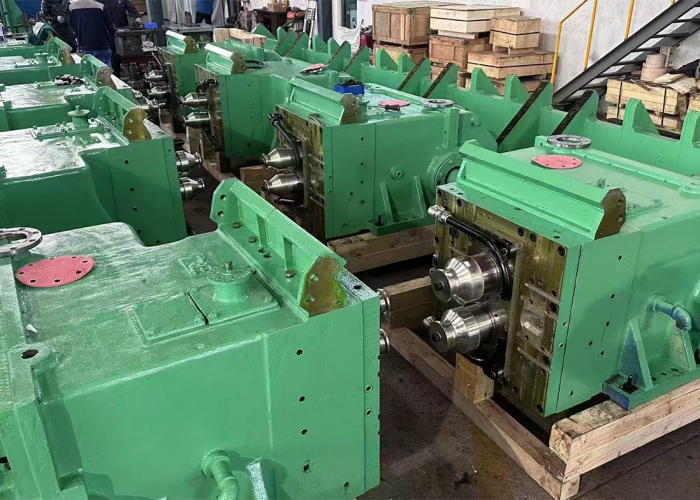

Finishing block mills, the extra heavy-top cross 45° high-speed wire rod finishing mills that is designed for producing high-speed wire rod.
Roller loop of this machine has been made of tungsten carbide and is connected to cantilever roll shaft.
It is known to require low maintenance and assures superior stability while working.
Finishing block mill comprises bevel-type gear in gearbox that is made of superior grade forged steel.
The finishing block mill is located in the high-speed wire rod workshop.
Rolling by 10 units rack continuous micro-tension rolling mill, rolling the Φ17~Φ21 mm of rolled piece transported from upstream into Φ5.5~Φ16 mm finished wire rod.
The mill guaranteed exit speed is 90 m/s. (When the specification of the finished product is Φ5.5 mm.)
Parameters:
- Incoming material specification: Φ17~Φ21 mm
- Incoming material temperature: >850℃
- Finished product specification: Φ5.5~Φ14 mm
- Rolled steel type: carbon steel, low alloy steel, high alloy steel, high-quality carbon steel, structural steel
- Exit speed of the tenth rack: 90m/s
- Rolling force: Φ230 rolling mill: 270KN; Φ170 rolling mill: 150KN
- Rolling torque: Φ230 rolling mill: 5.03 Knm; Φ170 rolling mill: 1.38Knm

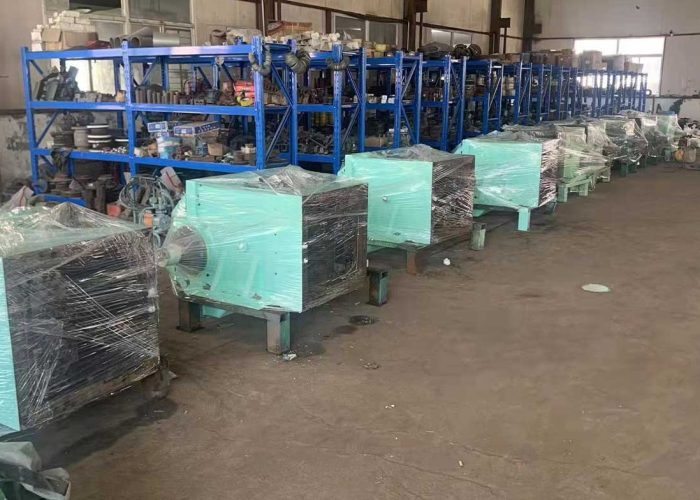

Workshop of Our Company
We are specialized in manufacturing high-speed finishing block mill, rebar rolling mill, high-speed gearbox, hard-faced gearbox, we also provide complete design for your rolling mill workshop, not only turnkey project but also tailor-made service, and we provide all the parts for roughing rolling mill, intermediate rolling mill process, including pinch roll, all kinds of shears, laying head, all of these crucial parts work extremely precisely and reliably.
Indian Customer Paid a Visit to Our Factory

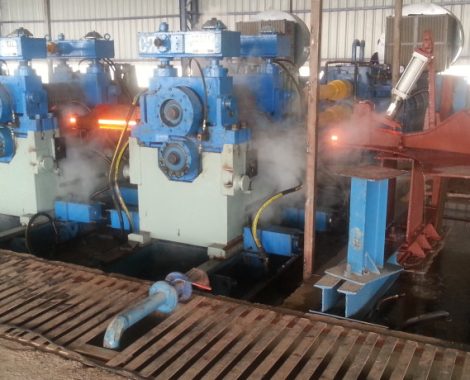

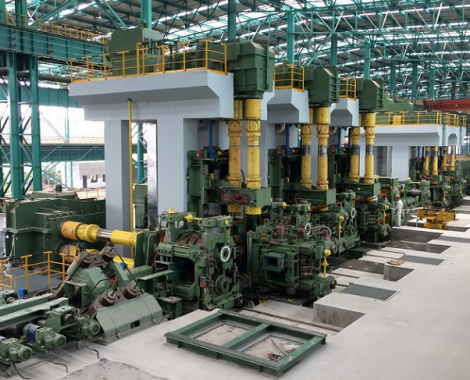

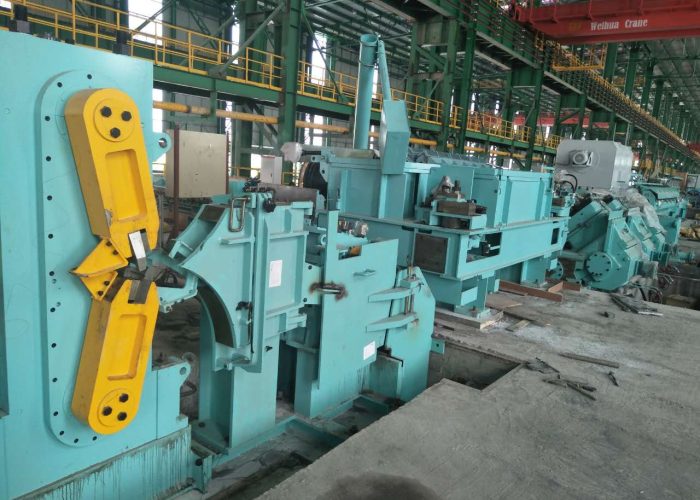

The Indian customer who wants to purchase finishing block mill came to visit our factory . The Indian customers stated their requirements about the new finishing rolling mill line in the meeting room. Our technical engineers and manager recommended a proper diameter which can satisfy their demands and improve production efficiency greatly. The picture shows that he has visited the steel rolling mill line we installed for our domestic customers.
